The What and Why of Smart Grids

The evolution of our use of electricity: The What and Why of Smart Grids (in collaboration with Francisco Javier Muñoz)

Before talking of Smart Grids… Is there a grid in my life? Why should I care?
The same instant I have switched on my computer and poured myself a cup of warm coffee from my coffemaker I have already been engaged in an electrical gridMy role, consumer endpoint.  The energy I have used in my computer and my coffemaker has been generated outside my house since I have no generation means –this is the case of over 99% consumers of electricity nowadays.

SmartGrid1In this most simple diagram there is just a link, the red arrow, by which a supplier sends me billable electrical power. As this is not a one to one relationship, the grid is the set of connections on which the electricity bought by the clients is served from the generation plants.

Classic Grids: from supplier to consumer

Traditionally, energy systems from power generation to homes are one-directional and based on more predictable, controllable and centralised power generation, looking something like this:

Diagram of an electric power system; transmission system is in blue

Diagram of an electric power system; transmission system is in blue

In this model the energy flows always in the same direction through each step. In the graphic there is no representation for electricity storage since there has not been efficient technology to be considered in this matter. This gives a radically stiff system: the kWh I use has to be generated and transported over the grid in real time.

Smart Grids: handling distributed generation and distributed storage in an open market

Quite a big deal of factors have made this traditional model of network evolve to a less one-directional grid:

  • An open energy market. Energy is a basic utility but this does not imply that it has to be a public or oligopolistic good. Competition[i] is possible, healthy and desirable for the quality of the service at a reasonable cost. This means the possibility several agents in each node of the grid: generation and storage, transport, distribution, commercialization.
  • Electricity obtained from renewable energies.[ii] The interest in renewable energies is not entirely due to greenhouse effect and global warming. For many people this is not even happening. However there is no argument about the effects on health that are caused by the combustion of fossil fuels to obtain energy.
  • Small scale local power generation in addition to large scale distant power plants: Distributed Generation. The transportation of energy has a cost in the form of losses. The transport infrastructures themselves are costly.[iii]
  • Distributed storage. One example at a home scale: a fotovoltaic array on the roof of my building can produce more energy during the day than what is being used at that moment by the people in the building at that interval. The excess of energy is stored in the batteries of the electrical vehicles parked at the building’s garage or other kind of home storage. When the demand of energy increases –people going back home, lower temperatures after dusk…- the energy is recovered from the local storage. All this energy does not have to travel long distances, which means less losses and lighter distribution frameworks.

The Smart Grid is the backbone of all these factors. The key points in the diagram below are:

  • There are some elements that are no longer one-directional: an electric vehicle (EV) can be taking energy from the grid –charge process- or releasing energy –car parked, plugged in and charged-.
  • Power can be generated in a distribution branch (e.g. great wind conditions in Spain’s La Mancha Eolic Parks) and transmitted to zones with demand at the same instant (e.g. Italy’s Torino area).

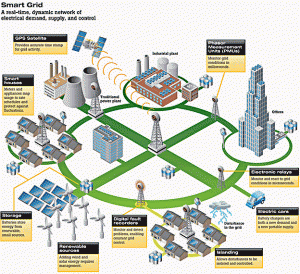

SMART GRID - A real-time dynamic network of electrical demand, supply and control (photo credit utilityproducts.com)

SMART GRID – A real-time dynamic network of electrical demand, supply and control (photo credit utilityproducts.com)

The Smart Grid’s job is routing the energy from the different types of sources (power plants, distributed generation sources, storage, international trade) to consumer nodes (residential, transportation –electric cars, buses and trains-, office buildings, industry…) under the premises of stability, security, sustainability and quality of service.
